1994 Mark VIII

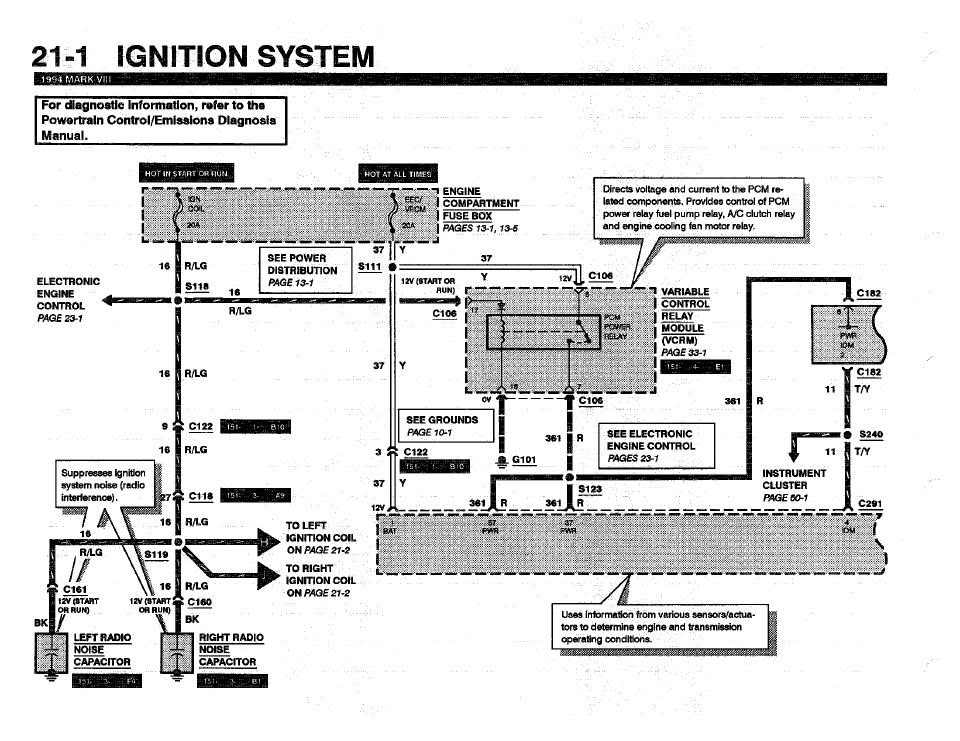

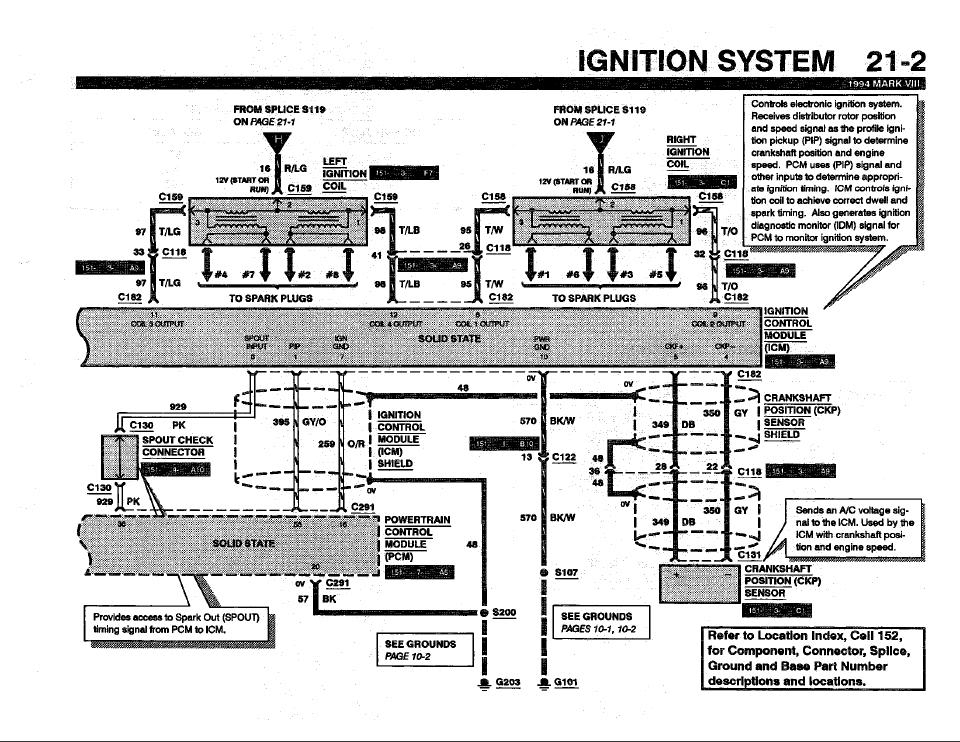

All, Here is the Wiring Diagram for a 1994 Mark VIII
Author
ModFoxMustangs
Views
1,860
First release
Last update
Rating
0.00 star(s) 0 ratings
